DR平板探测器


品牌: 先威
单价: 198000.00元/台
起订: 1 台
供货总量:
发货期限: 自买家付款之日起 天内发货
所在地: 上海 嘉定
有效期至: 2025-03-09 [已过期]
最后更新: 2017-08-31 10:57
浏览次数: 53

公司基本资料信息

您还没有登录,请登录后查看详情

详细说明

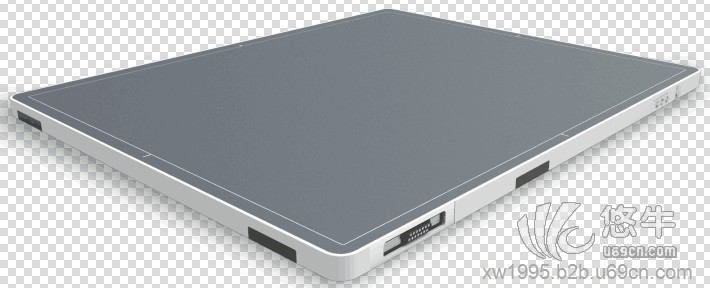

3543A是一款高性能、片盒大小的无线平板探测器。可以续航至少10小时,独特的无线传输技术,可以在3秒完成一副全分辨率的图像传输,即使在最糟糕的情况下也不会超过5秒。与此同时,探测器具有高DQE,高分辨率等优秀品质。探测器具备高度灵敏和支持自动曝光检测功能,可以方便的与所有高压发生器连接并同步。

3543A is a high performance, cassette-sized flat panel detector. Battery stands by for at least 10 hours. Unique wireless communication protocol ensures fast and reliable transmission of a full resolution image within as short as 2 seconds, and no more than 5 seconds even in the worst environment. The detector acquires outstanding images with high DQE and high resolution. Equipped with highly sensitive AED function, the detector can be easily connected to and synchronized with any kind of generators.



描述

GOS

CsI

探测器类别Detector Technology

非晶硅

非晶硅

闪烁体Scintillator

GOS



图像尺寸Image Size

35×43 cm

35×43 cm

像素矩阵Pixels Matrix

2560×3072

2560×3072

像素间距Pixel Pitch

140 um

140 um

A/D转换A/D Conversion

16bit

16bit

最小探测剂量Minimum Detectable Dose

20 nGy



最大线性剂量Maximum Linear Dose (uGy ,RQA5)

150



残影 Ghost (%, 300uGy, 60s)

<0.25

<0.25

空间分辨率 Spatial Resolution

3.6 LP/mm

3.6 LP/mm

出图时间Image Acquisition Time (有线/无线)(Wired/Wireless)

1/3 S

1/3 S

X-射线工作范围 X-ray Voltage Range

40-150 KV

40-150 KV

无线电池待机时间Battery standby time

10H

10H

数据接口Data Interface

GigE/802.11n,ac

GigE/802.11n,ac

功率Power Dissipation

20 W

20 W

适配器输入Adapter Input

AC 100-240V,50-60Hz

AC 100-240V,50-60Hz

适配器输出Adapter Output

DC 24V,60W

DC 24V,60W

探测器尺寸Dimensions

38×46×1.5 cm

38×46×1.5 cm

探测器重量Detector Weight

3.3 kg

3.3kg

探测器外壳材料Detector Housing Material

碳板,镁合金 Carbon,Alloy

碳板,镁合金Carbon,Alloy

防水等级Water tightness

IPX3

IPX3

工作环境Operating Environment

5-35oC,10-75% RH

5-35oC,10-75% RH

反对 0举报 0 收藏 0 评论 0
