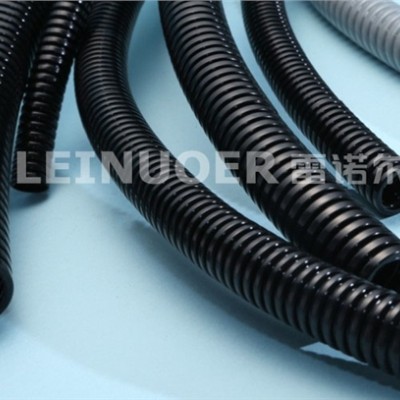

开口阻燃聚丙烯软管，剖开式PP管

使用微信扫描二维码分享朋友圈，成交更快更简单！

开口阻燃聚丙烯软管，剖开式PP管

产品代码: LNE-WS-PP

产品材质: PP聚丙烯（Polypropylene）

工作温度: -30℃~＋100℃短时可达＋110℃

结 构: 开口阻燃聚丙烯软管，剖开式PP管内部和表外均为波浪型；

颜 色: 黑色（根据需要可开口）

供应范围: 阻燃，FV-O

产品认证: 国家化学建材质量监督:GB/T14828.4-1993

特 性: 开口阻燃聚丙烯软管，剖开式PP管柔韧性好，表面光泽、耐化学腐蚀

应用领域: 开口阻燃聚丙烯软管，剖开式PP管重要用于汽车配线专用、也可用于机床机械，自动化仪表，电机马达，保护电缆电线不受外力磨损及绝缘

使用方法: 将电线电缆插入管内，在配上LNE：SM-G 、SM系列软管接头对应的型号使用即可；

型号 软管规格(AD) 内径×外径(mm) 弯曲半径(mm) 包装单位(m)

LNE-PP-10.0 AD10.0 6.5×10.0 16 100

LNE-PP-11.6 AD11.6 8.0×11.6 16 100

LNE-PP-13.0 AD13.0 10.0×13.0 20 100

LNE-PP-15.8 AD15.8 12.0×15.8 30 100

LNE-PP-18.5 AD18.5 14.3×18.5 40 100

LNE-PP-21.2 AD21.2 17.0×21.2 45 100

LNE-PP-25.0 AD25.0 20.0×25.0 45 50

LNE-PP-28.5 AD28.5 23.0×28.5 50 50

LNE-PP-34.5 AD34.5 29.0×34.5 60 50

LNE-PP-42.5 AD42.5 36.0×42.5 70 50

LNE-PP-54.5 AD54.5 48.0×54.5 90 25

LNE-PP-74.0 AD74.0 63.0×74.0 130 10

LNE-PP-88.0 AD88.0 76.0×88.0 170 10

LNE-PP-108.0 AD108.0 94.0×108.0 225 10

Product code: LNE-WS-PP

Product material: PP Polypropylene

Working temperature: -30~100, 110 can be reached but kept only for a short time

Structure: Wavy shape both interiorly and exteriorly

Color: Black. Other colors are customizable upon requirements.

Variety available: fire retardant, FV-O

Certification acquired: National Chemical Construction Material Supervision:GB/T14828.4-1993

Property: Good flexibility, smooth and bright surface, chemical corrosion resistant

Application: Mainly used in automobiles wiring. But it can also be used in machineries, automatic meters and gauges, motors, protecting the cables from abrasion and providing insulation to the wires and cables.

How to use: Insert the wires and cables into the pipe and fit respective types of LNE: SM-G and SM series flexible joints before using.

Item No. Specifications for flexible pipe Inner diameter × outer diameter Curved radius Packaging unit

LNE-PP-7.0 AD7.0 4.5*7.0 16 200

LNE-PP-10.0 AD10.0 6.5*10.0 16 100

LNE-PP-11.6 AD11.6 8.0*11.6 16 100

LNE-PP-13.0 AD13.0 10.0*13.0 20 100

LNE-PP-15.8 AD15.8 12.0*15.8 30 100

LNE-PP-18.5 AD18.5 14.3*18.5 40 100

LNE-PP-21.2 AD21.2 17.0*21.2 45 100

LNE-PP-25.0 AD25.0 20.0*25.0 45 50

LNE-PP-28.5 AD28.5 23.0*28.5 50 50

LNE-PP-34.5 AD34.5 29.0*34.5 60 50

LNE-PP-42.5 AD42.5 36.0*42.5 70 50

LNE-PP-54.5 AD54.5 48.0*54.5 90 25
