冲击扳手
高冲击力，而不损坏螺母
- 最大程度地降低损坏轴和螺母的风险
- 安全、用户友好
- 对螺母有效地施加冲击
- 适用于KM、KML、HM..T、HML..T、HM 30、HM 31、AN..、N..和N..系列的螺母 （适用于尺寸23及以上规格的螺母）
- 特别宽的冲击面

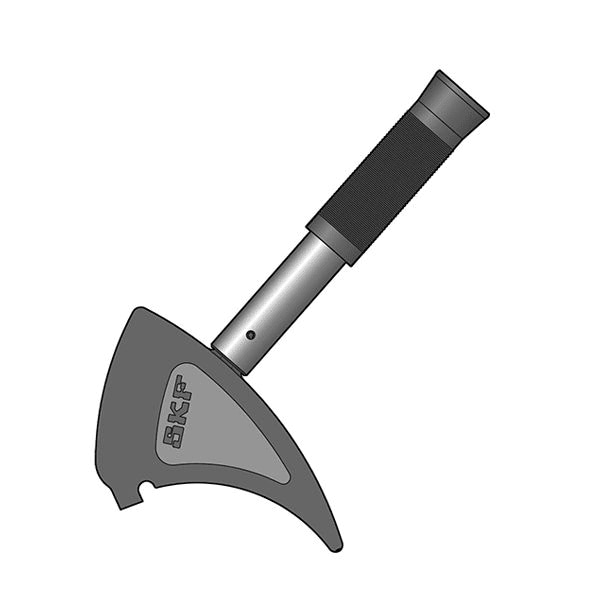

TMFN 23-30和TMFN 30-40的设计（图1）

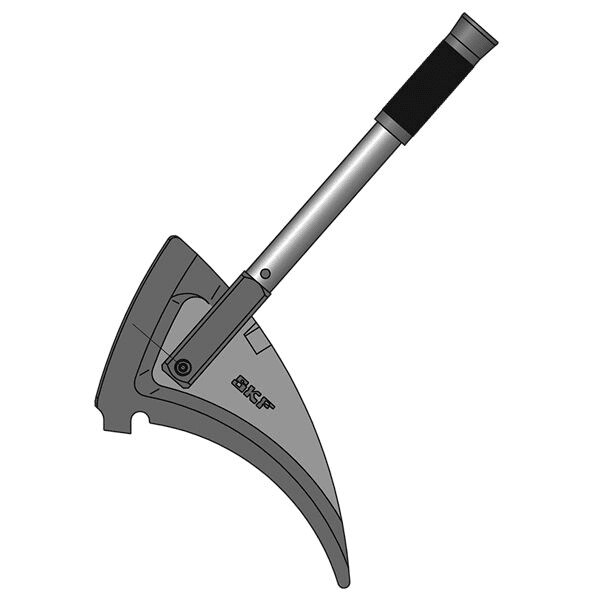

其它尺寸的TMFN冲击扳手的设计（图2）
| 技术参数 | ||
| 订货号 | 螺钉螺母外径 |
|
| |
mm | in. |
| TMFN 23-30 | 150–220 |
5.9–8.7 |
| TMFN 30-40 | 195–270 |
7.7–10.6 |
| TMFN 40-52 | 250–320 |
9.8–12.6 |
| TMFN 52-64 | 330–400 |
12.6–15.7 |
| TMFN 64-80 | 420–520 |
15.7–20.5 |
| TMFN 80-500 | 540–620 |
21.3–24.8 |
| TMFN 500-600 | 630–730 |
24.8–29.5 |
| TMFN 600-750 | 750–950 |
29.5–37.4 |
| 密封件选择 | |||||
| 订货号 | 适用的紧定套 |
适用的螺母系列 |
|||
| |
H 23, H 31, |
H 30, |
|
|
|
| |
H32 |
H39 |
KM | KML |
HM T |
| TMFN 23-30 | 24–30 |
26–32 |
23–30 |
26–32 |
– |
| TMFN 30-40 | 30–40 |
34–40 |
32–38 |
34–40 |
– |
| TMFN 40-52 | 40–48 |
44–52 |
40 | – | 42T–50T |
| TMFN 52-64 | 52–64 |
56–68 |
– | – | 52T–56T |
| TMFN 64-80 | 64–80 |
68–88 |
– | – | – |
| TMFN 80-500 | 80–500 |
88–530 |
– | – | – |
| TMFN 500-600 | 500–600 |
530–630 |
– | – | – |
| TMFN 600-750 | 600–750 |
670–800 |
– | – | – |
| 选择表（续） | ||||
| 订货号 | 适用的螺母系列 | |||
| |
HM |
KMFE | KMT | DIN 1804 (M) |
| TMFN 23-30 | – | 23–28 26L–28L |
24–30 |
M105x2 M105x2 M110x2 M115x2 M120x2 M125x2 M130x3 M140x3 M150x3 M160x3 |
| TMFN 30-40 | – | 30–40 |
32–40 |
M170x3 M180x3 M190x3 M200x3 |
| TMFN 40-52 | 3044–3052 |
– | 40, 44, 48 |
– |
| TMFN 52-64 | 3056–3068 |
– | – | – |
| TMFN 64-80 | 3168–3088 |
– | – | – |
| TMFN 80-500 | 3184–30/500 |
– | – | – |
| TMFN 500-600 | 31/500–30/630 |
– | – | – |
| TMFN 600-750 | 31/600–31/800 |
|||
