喷嘴

使用微信扫描二维码分享朋友圈，成交更快更简单！

旋转清洗球_360°清洗喷嘴_清洗喷嘴

喷嘴喷雾特性及用途：

360喷嘴结构紧凑，喷嘴本体有2-3个喷口处于喷头的特殊位置。喷嘴里面有陶瓷轴承，在谁压的作用下能够带动喷嘴自动旋转，喷嘴的主体采用的是316不锈钢，陶瓷轴承能够更大的耐磨效果，该喷嘴产品主要用于小桶及罐子的清洗。

清洗喷嘴又称清洗球，该产品主要用于医药行业，请您有需求的话致电斐卓公司，我司地址上海松江洞泾工业区洞业路205号

上海斐卓喷雾系统公司设计特点

可调球形喷嘴有两种连接方式：夹扣型（26988、27988系列）和螺纹型（155系列）。夹扣型喷嘴通过弹簧固定在集管上;螺纹型喷嘴则采用螺纹连接方式。

一般应用

●金属清洗

●表面处理中的脱脂、磷化

●其他低压应用

There are two kinds of adjustable spherical nozzle connection mode: clip type (26988, 27988 series) and thread type (series 155).Clamp type nozzle through the spring fixed on the manifold;Threaded screw type nozzle is used.

Adjustable spherical nozzle with hollow taper, solid cone, fan-shaped spray three patterns.It is a direct connection by spherical nozzle or by indirect connection thread ball, quick release ball nozzle and form a variety of series, to serve the needs of various applications.In the process of use, you can quickly adjust the nozzle jet direction, make it always in good working condition.

Adjustable spherical nozzle spray remove very quickly.Can need not any tool, by hand.Remove the ball nozzle from nozzle, thread ball or quick release can insert a new nozzle.

The general application

Low metal cleaning

When the degreasing, phosphating surface treatment

Other low voltage applications

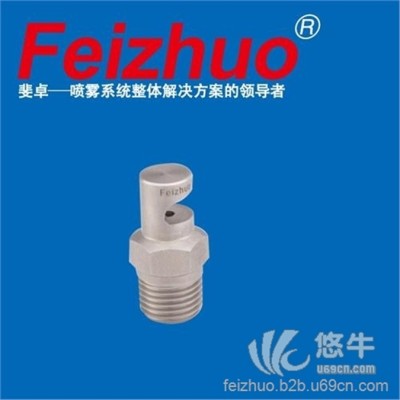

标准型扇形喷嘴：H/U系列

标准型扇形喷嘴H/U系列喷嘴有自身独有的优势，能够产生高冲击力的液柱流或扇形喷雾，喷射角度为0°-110°。

该扇形喷嘴喷出的喷雾颗粒均匀，液滴大小为小到中等，当需要若干个喷雾产生重叠喷雾时，逐渐变细的具有特色的喷雾边缘使得喷雾的覆盖区域更加均匀。

标准型扇形喷嘴按流量的大小分为H/U和H/VV系列，H/VV喷嘴可配备滤网和可调球接头；

标准型扇形喷嘴主要用来：

冷却与淬火；

产品的洗涤；

水冷却；

空气与气体净化器；

插洗器的洗涤；

液体器的清洗；

灰尘控制；

防火；

Standard fan nozzle: H/U series

Standard fan nozzle H/U series nozzle has its own unique advantages, can produce high impact of liquid column flow or fan-shaped spray, spray Angle for 0 ° to 110 °.

The fan nozzle spray particle uniformity, droplet size is small to medium, when need several overlapping spray produce spray, tapering edge characteristic spray makes more evenly spray coverage area.

The size of the standard fan nozzle according to the flow is divided into H/U and H/VV series, H/VV nozzle can be equipped with mesh and adjustable ball joints;

Standard fan nozzle is mainly used to:

Cooling and quenching;

The product of washing;

Water cooling;

Air and gas purifier;

Thrust washer washing;

The liquid is clean;

Dust control;

Fire prevention;
