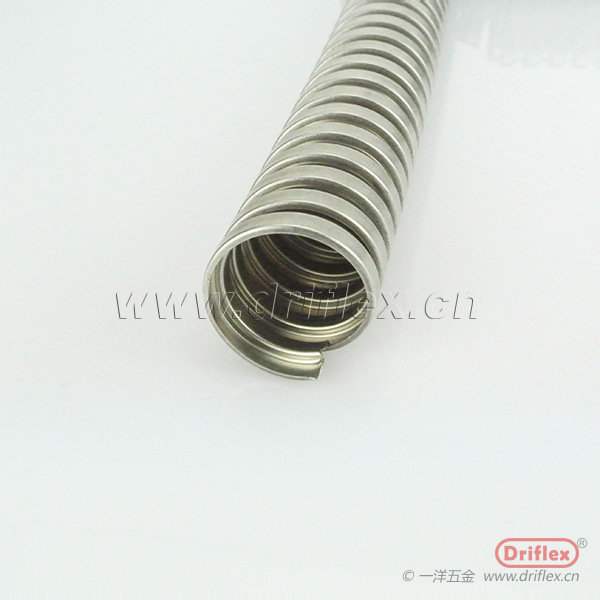

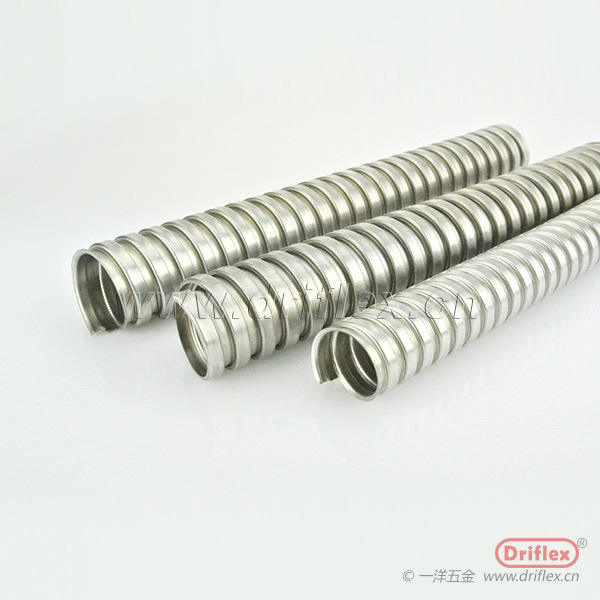

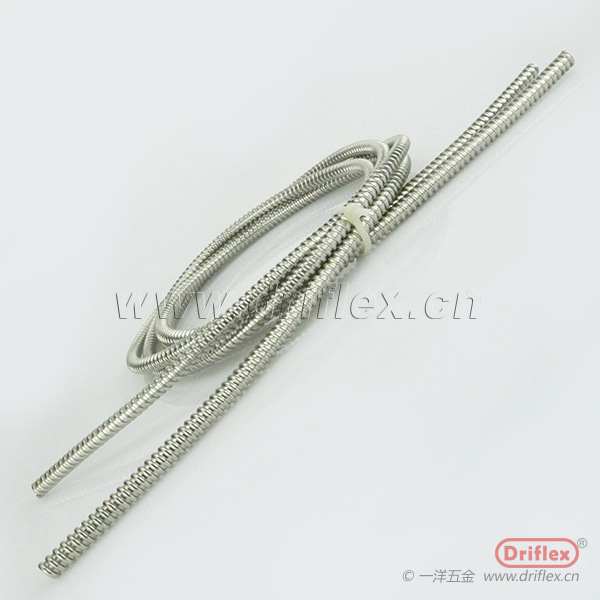

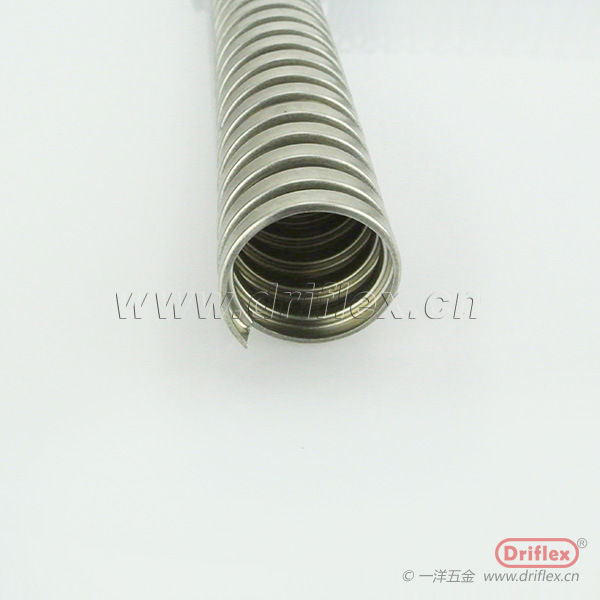

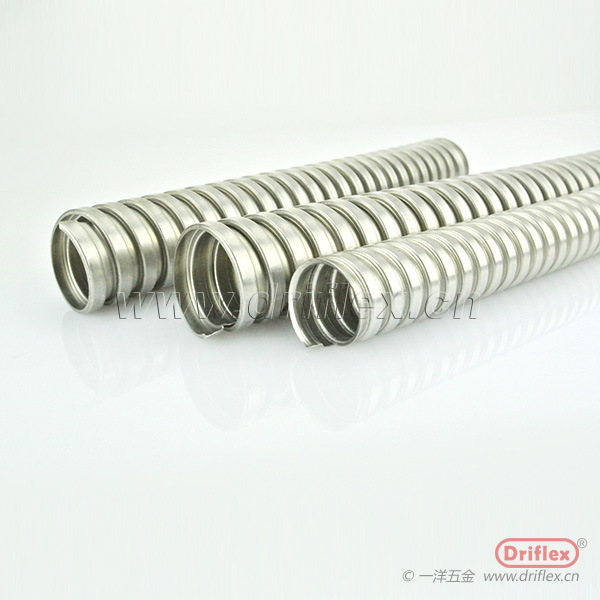

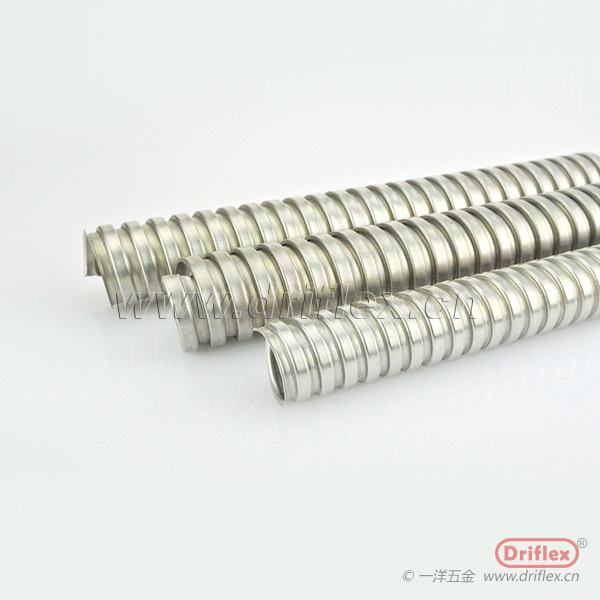

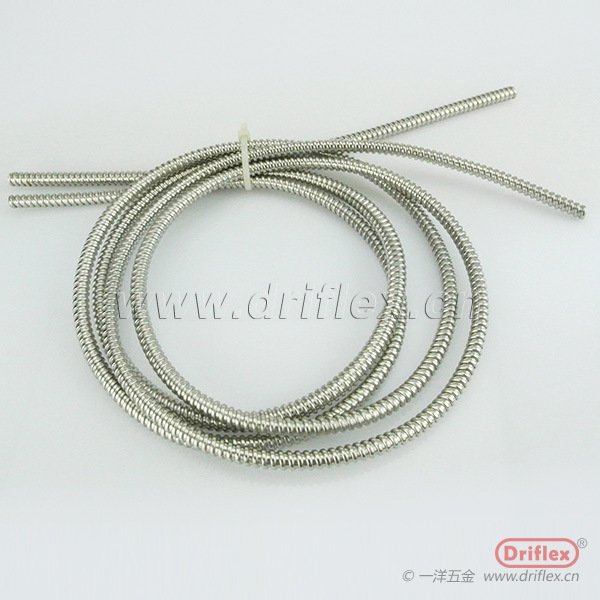

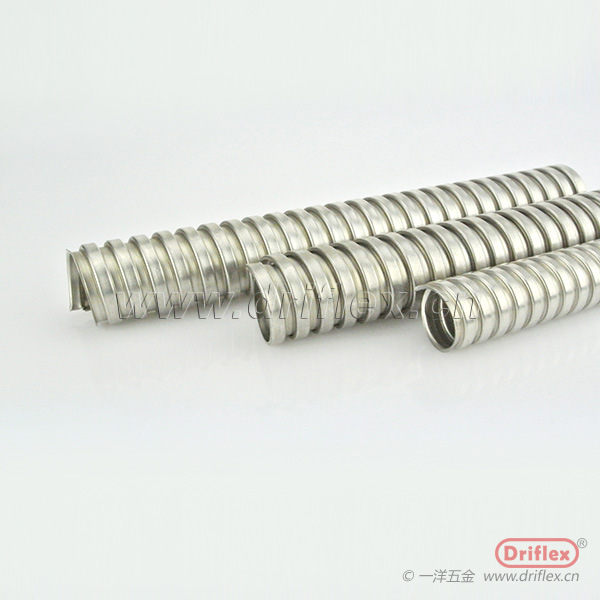

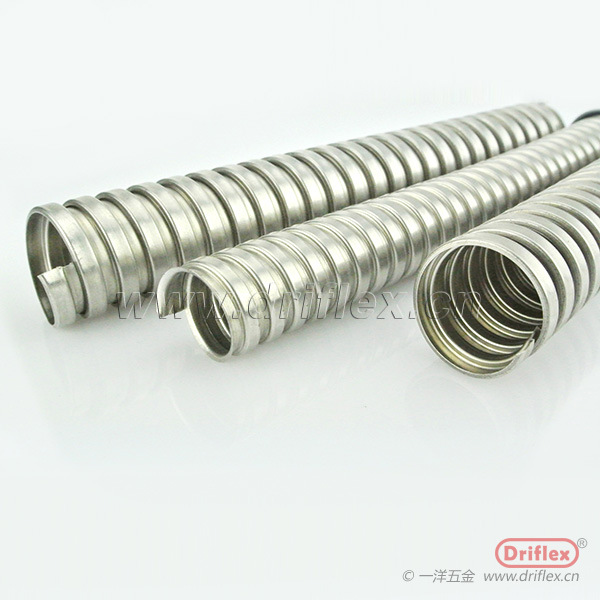

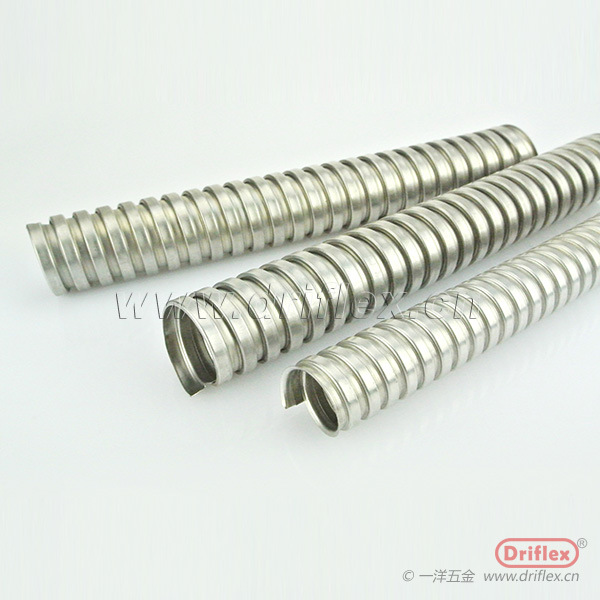

| 单勾不锈钢金属软管 | Squarelocked Galvanized Steel Flexible Conduit | |||||
| 材 质： | 不锈钢钢带 | |||||
| 防护等级： | IP40 | |||||
| 耐温范围： | -50℃ - +300℃ | |||||
| 拉 力： | 1500N | |||||
| Materials: | Galvanized Steel | |||||
| Protection Rating: | IP40 | |||||
| Temperature Range: | -50℃ - +300℃ | |||||
| Tension： | 1500N | |||||
| 型号 Part No. | 规格 | 通径 | 内径(mm) | 外径(mm) | 弯曲半径（mm) | 包装（m/coil) |
| 不锈钢钢带（SS) | Inch | mm | I.D. | O.D. | Benging Radius | Packing |
| FM-7SS | 3/16" | Ф6 | 5.70-6.00 | 8.20-8.50 | 22.5 | 100 |
| FM-8SS | 1/4" | Ф8 | 7.80-8.10 | 10.50-10.80 | 22.5 | 100 |
| FM-9SS | 5/16" | Ф10 | 9.70-10.00 | 13.20-13.50 | 30.0 | 50 |
| FM-10SS | 3/8" | Ф12 | 12.30-12.60 | 15.50-15.80 | 33.0 | 50 |
| FM-11SS | 1/2" | Ф16 | 15.70-16.00 | 19.50-20.00 | 40.0 | 50 |
| FM-12SS | 3/4" | Ф20 | 19.70-20.00 | 24.50-24.80 | 50.0 | 50 |
| FM-13SS | 1" | Ф25 | 25.30-25.80 | 30.00-30.50 | 55.0 | 50 |
| FM-14SS | 1-1/4" | Ф32 | 32.30-32.80 | 37.50-38.00 | 80.0 | 25 |
| FM-15SS | 1-1/2" | Ф38 | 38.30-38.80 | 44.50-45.00 | 90.0 | 25 |
| FM-16SS | 2" | Ф51 | 50.00-50.50 | 58.30-58.80 | 110.0 | 20 |
| FM-17SS | 2-1/2" | Ф64 | 62.50-63.20 | 72.30-73.00 | 130.0 | 10 |
| FM-18SS | 3" | Ф75 | 73.00-73.70 | 83.30-84.00 | 160.0 | 10 |
| FM-19SS | 4" | Ф100 | 87.50-88.50 | 108.00-109.00 | 210.0 | 5 |
