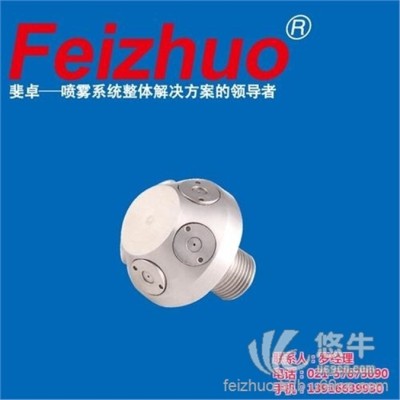

旋转喷雾喷嘴

使用微信扫描二维码分享朋友圈，成交更快更简单！

斐卓Feizhuo虹吸雾化喷嘴设计特点：

虹吸雾化喷嘴能够调节液体流量，在不改变空气压力和液体压力的环境下，同样可以产生合乎要求的喷雾，因此具有很强的适应性。每一种喷雾装置均由空气帽和液体毛组成，能够提供扇形和圆形的喷雾模式，并有着广泛的流量范围。喷嘴体的入口接头有多种尺寸，适合大多数常用的管道。以上喷嘴部件可以互换，这为得到不同的喷雾性能提供了灵活机动性。

The Fijian zhuo Feizhuo siphon atomization nozzle design features:

Siphon is a fluid mechanics phenomenon, can need not pump and pumping liquid absorption.Siphon atomization nozzle decreased by increasing the pressure of a gas or liquid pressure to get more fine droplet spray, which leads to higher turnover of gas liquid flow rate.Siphon the micro droplet spray atomization nozzle, can volatilize very good humidification effect on the surrounding environment, the nozzle is the requirement of humidity control places ideal choice.The internal structure of special design can make the liquid and gas mixing, produce fine spray droplet size.Usually, by increasing the gas pressure or lower liquid pressure can be more subtle (30 microns) of spray droplets, resulting in a higher gas flow rate and liquid flow rate.

Siphon atomizing nozzle can adjust liquid flow rate, without changing the air pressure and fluid pressure environment, also can produce accordance with the requirements of the spray, so has a strong adaptability.Each spray of air cap and liquid hair, provide the fan and circular spray pattern, and has a wide flow range.The entrance of the nozzle body joint has a variety of sizes, suitable for most commonly used pipe.Above the nozzle parts are interchangeable, the performance for different spray flexible mobility.

斐卓实心广角喷嘴G-WSQ

G-W、GG-W广角实心锥型喷嘴具有三体结构(喷嘴体/帽盖/叶片)其叶片可以拆卸；此类实心锥形喷嘴适合于安装在集管和分支管上，以便拆卸和检查帽盖与叶片而不必从集管上卸下喷嘴体。

H-WSQ和HH-WSQ广角方形实心锥形喷嘴适合于安装在需要均匀覆盖矩形区域的地方。

1-1/4英寸和更大尺寸的喷嘴是铸件型的，具有可拆卸的叶片。

广角实心喷嘴一般应用于：

洗涤与漂淋过程；

焦炭、原生金属和其他材料的淬火与冷却；

在处理大矿石、煤、石灰石、沙和石子过程中抑制易散灰尘；

废气的洗涤和冷却以除灰尘和其他燃烧产物；

淹浸易燃物品和储物箱以达防火灭火之目的；

泡沫材料的崩裂与脱泡；

在化学反应过程中喷水

The Feizhuo solid wide-angle spray nozzle G - WSQ

G W, GG W wide Angle type solid cone nozzle with three body structure (nozzle body/cap/leaf) the blade can be removed;Such solid cone nozzle for pipe and branch pipe installed on the set, in order to remove and check the cap and blade and don't have to be removed from the manifold nozzle body.

H - WSQ and HH - WSQ wide-angle square solid cone nozzle is suitable for installation in need uniform rectangular area.

1-1/4 'and larger size of the nozzle is casting type, has a removable blade.

Wide Angle solid nozzle is generally applied to:

Washing and bleaching leaching process;

Coke, primary metal and other materials, quenching and cooling;

In dealing with large ore, coal, limestone, sand and gravel in the process of powder dust suppression easily;

Exhaust gas cleaning and cooling to remove dust and other products of combustion;

Flooded immersion flammable items and locker so as to achieve of fire prevention;

The foam disintegration and deaeration;

In the process of chemical reaction spray;

；

自动空气雾化喷嘴各种型号工作原理

标准型

  1/4J /JN的特点是具有1/4英寸NPT或BSPT（内）管螺纹气体和液体入口，以及1/8英寸NPT或BSPT（内）管螺纹气体驱动腔入口。1/4DJ 型与小流量的液体帽配合使用。

 紧凑型

1/8MN 的特点是一个紧凑型自动雾化喷嘴，其特点是雾化和驱动腔的气体只有单个入口。这种设计的喷嘴的喷雾与喷嘴进口轴线成45。角。

 1/8J/JN雾化喷嘴是一个紧凑型自动雾化喷嘴，具有单气体管路型的运行特点,是为了小区域使用而专门设计的。气体和液体入口是1/8英寸NPT或BSPT（内）管螺纹连接。

 单气体管路型

1/4JAU的特点是采用单个气体管路，既用于喷射雾 化，也用于气体驱动的运行，单气体管路型可以调节压力以达到预期的“开-关”时期，以引起雾化气体和液体的同时流动。喷嘴的运行每分钟可达180次循环，要求小气体压力为2巴

共同工作原理

jau自动精细雾化喷嘴的特点是有一个内部气体驱动腔，以控制“开关”运行，每分钟可运行180次循环，每次“开-关”运行只切断喷雾器的液体部份。送到喷嘴的液体流可以通过虹吸或重力传送，也可通过压力传送。     所有喷嘴零件按质量标准控制精准制造，以达到光滑运行和长久的使用寿命。可以选择镀镍黄铜或不锈钢制造的喷嘴。所有的喷嘴都有一个硬拉不锈钢针阀，不锈钢流体帽和不锈钢弹簧.
