| 机型 |

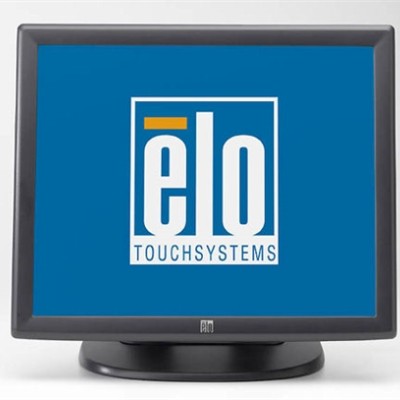

1515L |
| 外壳／边框颜色 |
Dark gray and beige |
| 显示类别 |
活动矩阵TFTLCD |
| 显示器尺寸 |
Size: 15.0" diagonal |
| Aspect ratio: 4 x 3 |
| 显示区域 |
Horizontal: 12.0" (304 mm) |
| Vertical: 9.0" (228 mm) |
| 显示器尺寸 |
Width: 13.8" (350 mm) |
| Height (inc. base): 12.2" (310 mm) |
| Depth (inc. base): 6.9" (175 mm) |
| 尺寸图编号 |
MS600556 Rev A |
| 最佳（真实）分辨率 |
1024 x 768 |
| 其它支持分辨率 |
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz |
| 832 x 624 at 75 Hz (Mac) |
| 800 x 600 at 56, 60, 72 or 75 Hz |
| 720 x 400 at 70 Hz |
| 720 x 350 at 70 Hz |
| 640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz |
| 颜色 |
16.2 million |
| 亮度－LCD面板 |
LCD panel: 250 cd/m2 (typical) |
| 亮度－带触摸屏的LCD面板 |
with AccuTouch: 200 cd/m2 (typical) |
| with Acoustic Pulse Recognition: 230 cd/m2 (typical) |
| with IntelliTouch: 230 cd/m2 (typical) |
| 响应时间 |
14.5 msec (typical) |
| 视解（从中间） |
Horizontal (left/right): ±70° or 140° total |
| Vertical (up/down): 60 °/55° or 115° total |
| 对比度（标准值） |
500:1 (typical) |
| 输入视频模式 |
RGB模拟 |
| 输入同步模式 |
分离式H/V同步、合成同步、绿同步 |
| 输入视频信号连接器 |
MiniD-Sub 15针VGA型连接器 |
| 输入频率 |
Horizontal: 31.5-60.2 kHz |
| Vertical: 56.3-75 Hz |
| 电源 |
Type: Internal, with jack to accept power from optional external brick |
| Monitor input voltage: 100-240 VAC, 50/60 Hz |
| Optional input voltage: +12VDC ±5% |
| 附加功能 |
USB 磁卡读卡器 |
| 功耗 |
最大30W |
| 温度 |
工作温度0℃－40℃;储藏温度－20℃－60℃ |
| 保修 |
三年保修 |
