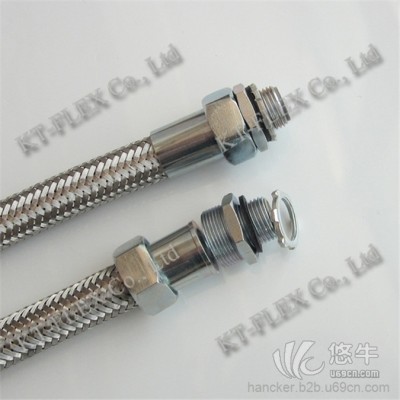

TYPE MVT - VACUUM TYPE GVT - VACUUM, BRAIDED JACKET
| 编号 | 内径(mm) | 外径(mm) | 弯曲半径(mm) | 口径 | 壁厚(mm) | 线径 | 根数 | 使用压力(Mpa) | 破坏压力(Mpa) |
| MVT100 / GVT100 | 20.4 | 30.5 | 80-140 | 20 | 0.3 | 0.3 | 320 | 3.6 | 23.0 |
| MVT101 / GVT101 | 26.5 | 37.5 | 90-170 | 25 | 0.3 | 0.4 | 288 | 4.1 | 23.0 |
| MVT102 / GVT102 | 33.0 | 45.5 | 100-180 | 32 | 0.3 | 0.4 | 384 | 2.9 | 15.2 |
| MVT103 / GVT103 | 40.5 | 55.5 | 120-220 | 40 | 0.4 | 0.4 | 480 | 2.9 | 13.7 |
| MVT104 / GVT104 | 46.0 | 61.5 | 130-230 | 45 | 0.4 | 0.4 | 480 | 2.0 | 13.6 |
| MVT105 / GVT105 | 54.5 | 72.5 | 140-240 | 50 | 0.4 | 0.4 | 528 | 1.6 | 10.5 |
| MVT106 / GVT106 | 64.0 | 86.0 | 150-250 | 65 | 0.4 | 0.5 | 576 | 1.6 | 9.3 |
| MVT107 / GVT107 | 77.0 | 99.0 | 220-300 | 80 | 0.4 | 0.5 | 576 | 1.6 | 8.8 |
| MVT108 / GVT108 | 101.5 | 125.5 | 280-380 | 100 | 0.4 | 0.5 | 720 | 1.1 | 6.4 |
| MVT109 / GVT109 | 127.0 | 152.0 | 350-510 | 125 | 0.5 | 0.5 | 864 | 1.0 | 5.7 |
| MVT110 / GVT110 | 150.5 | 178.4 | 500-600 | 150 | 0.5 | 0.5 | 1152 | 1.0 | 5.8 |
| MVT111 / GVT111 | 200.0 | 231.0 | 750-850 | 200 | 0.6 | 0.7 | 1152 | 1.1 | 4.2 |
| MVT112 / GVT112 | 249.5 | 284.0 | 850-950 | 250 | 0.6 | 0.5 | 3200 | 1.1 | 3.4 |
| MVT113 / GVT113 | 299.5 | 336.0 | 1200-1400 | 300 | 0.7 | 0.6 | 3200 | 1.1 | 3.4 |
| MVT114 / GVT114 | 334.0 | 373.0 | 1300-1500 | 350 | 1.0 | 0.7 | 3200 | 1.3 | 2.9 |
